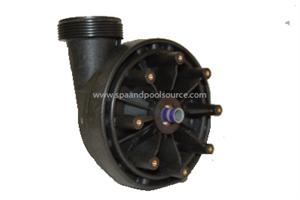

Sundance® Spas Wet End 4.2/2.5 Hp
List Price: $169.99
Sale Price: $88.95
Item Number: sunwetend2.5
Manufacturer: Sundance® Spas
Manufacturer Part No: sunwetend2.5
|Sundance® Spas Wet End for 4.2/ 2.5 Hp Pumps. 2 inch Suction and Discharge. (3 inch OD). 2.5HP. 48 Frame. Sundance used this wet end 1999- 04/2009
Contains: front and rear housing, 2.5 Hp impeller, o-ring, seal and screws. Note: We use only a Viton Seal on our Wet ends for long life. The viton seal is designed for harsh chemical environments such as salt, ozone and chemically treated water. These seals are more costly than a standard seal used by most of our competitors.
This Sundance® Spas wet end used on these Sundance Spa Models from 1999-2005:
Altamar, Austin, Bahia, Burlington, Calypso, Calypso I, Calypso II, Cameo, Camden, Capri, Caprio ST, Cayman, Certa, Corum, Cyprus, Hamilton, Hartford, Hawthorne, Madison, Marin, Majesta, Maxxus, Montego, Olympia, Optima, Palermo, Rio, Telluride.
Replacement pump wet end for these older Sundance part numbers:
6500-254, 6500-260, 6500-261, 6500-263, 6500-268, 6500-754,6500-760, 6500-761, 6500-762, 6500-768
Replacement pump wet end used on these Jacuzzi Spas Models:
For 48 Frame motors thru bolt only! Cannot be used on a 56 Frame motor!
Must be a 48 Frame Pump (NOT 56 FRAME) which Sundance used on 1999-2005. Can be used on all 48 frame pumps used on Sundance Spas that have a 3 5/8 inch bolt pattern.
The new wet ends have eight legs instead of the four that attache the 4 bolts to the motor. Only 4 of the legs are used, you turn the wet end so that the discharge is in the position needed and then using the thru bolts on the motot you attach the 4 legs that correspond to it. The thru bolts are spaced at 3 5/8 inch, make sure that is the bolt pattern on your motor.
If your pump ID plate on your pump says 56 Frame see http://www.spaandpoolsource.com/sundancetheraflothermaxaqua-floxpseriespumpcomponents.aspx
. Read information given on this page.
Determining whether your motor is a 48 or 56 Frame Motor.
The spa and pool industry use various "Frame" sizes to mount their "wet end" or pump to. A bracket mount motor has a welded base for mounting. These motors can be a 48 or 56 Frame.
Other types of motors such as the "C" Frame or Round Face and the Square Flange are all 56 Frame.
There are several ways to figure out the Frame size. One is to look at the spec sheet where it says Frame (FR) it might have some letters with it but will have 48 or 56 as the frame size.
The other way to determine is to measure the thru bolts (the 4 bolts that run thru the length of the motor and screw onto the wet end or volute of the pump). Measure the distance between the thru bolts, DO NOT measure diagonally but from one bolt to the next bolt.
48 FRAME distance between the 2 bolts is 3 5/8 inch
56 FRAME distance between the 2 bolts is 4 1/8 inch
Sundance Spas used a 56 Frame motor in 97-98 that measures 4inch and some that measure 4 1/8 inch, you must measure to determine which one you have, if you m=have a motor from that time period.
Because all manufactures do not call all things the same this is the best way to tell the Frame size.
How to Determine Spa Plumbing Size
Pump plumbing sizes are nominal, and not actual outside diameter (OD) of the threaded intake and/or discharge. Use a tape measure and check your old pump thread size against the sizing table
Plumbing Size Pump Thread OD (approx.)
