Sundance Wet End 4.0/2.0 Hp

<< Previous in Sundance Spas, Jacuzzi Spas Pumps, Theramax, Theraflo Pumps, 1997-Present

Next in Sundance Spas, Jacuzzi Spas Pumps, Theramax, Theraflo Pumps, 1997-Present >>

Your Price: $ 98.85 FREE Shipping!*

Item Number: sunwetend2.0

Manufacturer: Sundance® Spas

Manufacturer Part No: sunwetend2.0

Quantity:

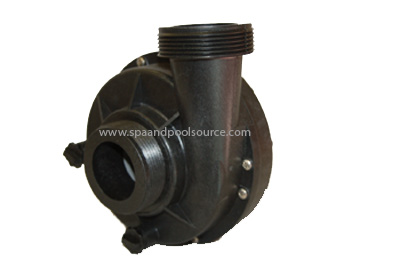

Complete Sundance Wet End for 4.0/ 2.0 Hp Pumps.

Contains: front and rear housing, 2.0 Hp impeller, o-ring, seal and screws. All you need to do is install it onto the original motor. Must be a 48 Frame Pump (NOT 56 FRAME) which Sundance used on 1999-2005. If your pump ID plate on your pump says 56 Frame see http://www.spaandpoolsource.com/sundancetheraflothermaxaqua-floxpseriespumpcomponents.aspx. Read information given on this page or below
Used on Sundance Models: Altamar, Bahia, Calypso, Calypso II, Cameo, Certa, Chelsee, Hamilton, Hartford, Hawthorne, Majesta, Marin, Madison, Maxxus (#2and#3 pump), Montego, Optima, Palermo, Telluride. Current Replacement Pump Wet End for these old part numbers: 6500-262, 6500-264, 6500-265, 6500-266, 6500-269, 6500-762, 6500-763 6500-764, 6500-765, 6500-766, 6500-769, 6500-347.

Used on Jacuzzi Models: 325,330,335,340,345,350,355,360,365,370,375,380,385

For 48 Frame motors thru bolt only! Cannot be used on a 56 Frame motor!

Determining whether your motor is a 48 or 56 Frame Motor.

The spa and pool industry use various "Frame" sizes to mount their "wet end" or pump to. A bracket mount motor has a welded base for mounting. These motors can be a 48 or 56 Frame.

Other types of motors such as the "C" Frame or Round Face and the Square Flange are all 56 Frame.

There are several ways to figure out the Frame size. One is to look at the spec sheet where it says Frame (FR) it might have some letters with it but will have 48 or 56 as the frame size.

The other way to determine is to measure the thru bolts (the 4 bolts that run thru the length of the motor and screw onto the wet end or volute of the pump). Measure the distance between the thru bolts, DO NOT measure diagonally but from one bolt to the next bolt.

48 FRAME distance between the 2 bolts is 3 5/8 inch

56 FRAME distance between the 2 bolts is 4 1/8 inch

Because all manufactures do not call all things the same this is the best way to tell the Frame size.

PLEASE NOTE: AQUA-FLO FMXP FRAME Wet ends, have two different sizes. They used 2 different motor manufactures, Emerson and Magnetek which are different sizes:

EMERSON MOTORS: Distance between the 2 bolts is 4 inch

MAGNETEK MOTORS: Distance between the 2 bolts is 4 1/8 inch

*We ship select Sundance parts with FREE GROUND SHIPPING with a $4.95 handling fee on all orders. ( Contiguous U.S. only).
