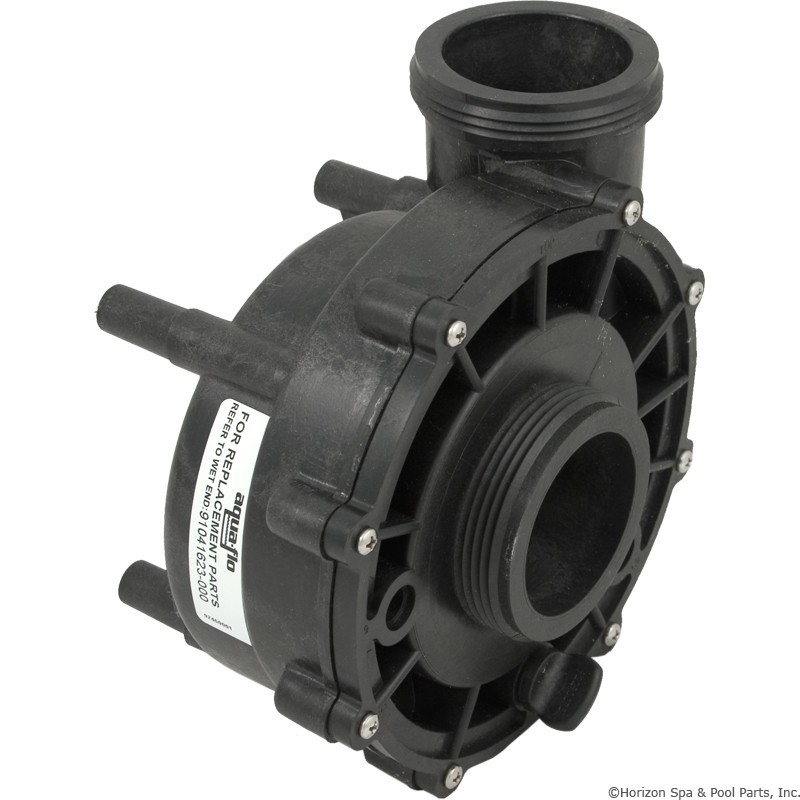

91041623, Aqua-Flo Wet End, 2.5 HP, 56 Frame FMXP2
|
|
List Price: $162.45
Your Price: $87.73
Item Number: 34-402-1117
Manufacturer: Aqua-flo
Manufacturer Part No: 91041623
|
Aqua-Flo Wet End, 2.5 HP 2", 6.1"Dia. 56 Frame FMXP2
Fits Emerson Motors Only! Measurement between thru bolts: 4 inches ( please see: Determining whether your motor is a 48 or 56 Frame Motor.)
Used in Sundance Theramax II Pumps 1997-1999 Aqua-Flo Wet Ends. Sundance was going thru transitions with the pumps and went from Aqua-Flo to Sundance own manufactured wet ends. Make sure you look and see what you have by visual and measurement if wanting to replace just the wet end.
Determining whether your motor is a 48 or 56 Frame Motor.
The spa and pool industry use various "Frame" sizes to mount their "wet end" or pump to. A bracket mount motor has a welded base for mounting. These motors can be a 48 or 56 Frame.
Other types of motors such as the "C" Frame or Round Face and the Square Flange are all 56 Frame.
There are several ways to figure out the Frame size. One is to look at the spec sheet where it says Frame (FR) it might have some letters with it but will have 48 or 56 as the frame size.
The other way to determine is to measure the thru bolts (the 4 bolts that run thru the length of the motor and screw onto the wet end or volute of the pump). Measure the distance between the thru bolts, DO NOT measure diagonally but from one bolt to the next bolt.
48 FRAME distance between the 2 bolts is 3 5/8 inch
56 FRAME distance between the 2 bolts is 4 1/8 inch
Because all manufactures do not call all things the same this is the best way to tell the Frame size.
PLEASE NOTE: AQUA-FLO FMXP FRAME Wet ends, have two different sizes. They used 2 different motor manufactures, Emerson and Magnetek which are different sizes:
EMERSON MOTORS: Distance between the 2 bolts is 4 inch
MAGNETEK MOTORS: Distance between the 2 bolts is 4 1/8 inch |
List Price: $675.00
Your Price: $472.50 In Stock! On Sale! For Best Price, Click on More Info for Sale Price Link!
6500-341 Sundance Spas, Jacuzzi Spas Pump. 2.5 HP Continuous, 4.2 HP Uprated, 240 Volt, 1 Speed. Replacement Pump for 1997-Present Sundance Spas. Also used on Jacuzzi Spas. Comes with 6000-532 Pump Bracket. For all Models/Applications Click on More Info
|
List Price: $675.00
Your Price: $472.50 In Stock! On Sale! For Best Price, Click on More Info for Sale Price Link!
6500-343 Sundance Spas Pump. 2.5 HP, 4.2 HP Uprated, 240 Volt, 2 Speed.
Replacement Pump for 1997-Present Sundance Spas. Also used on Jacuzzi Spas. Comes with the 6000-532 Pump Bracket. Click on MORE for Application and Sale Pricing!
| |
|
|
|
