6560-860, Sundance Spas Flow Switch. For All 6/99 - Present 2 or 3 pump system.
|
|
List Price: $88.47
Your Price: $ 61.93 FREE Shipping! Low price Guaranteed!*
FREE Shipping on this item!
Item Number: 6560-860 Flow Switch
Manufacturer: Sundance® Spas
Manufacturer Part No: 6560-860
|
6560-860, Sundance Spas Flow Switch. Also used on Jacuzzi Spas.

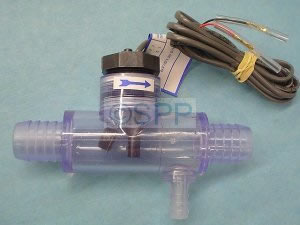

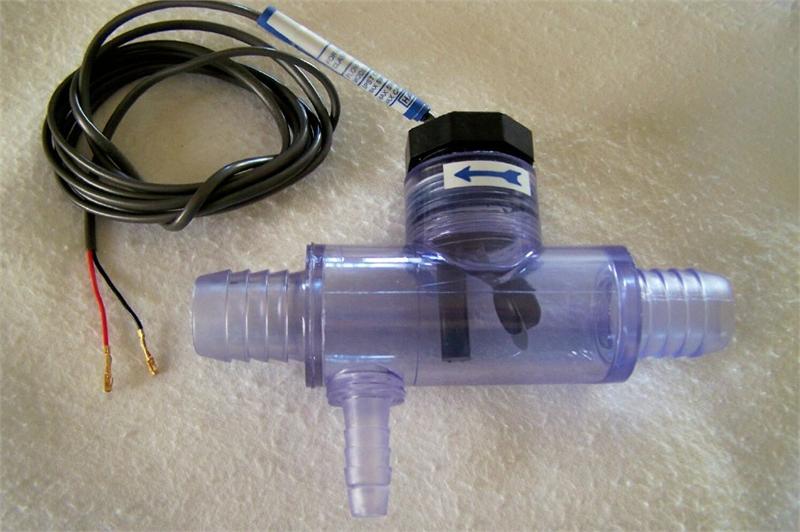

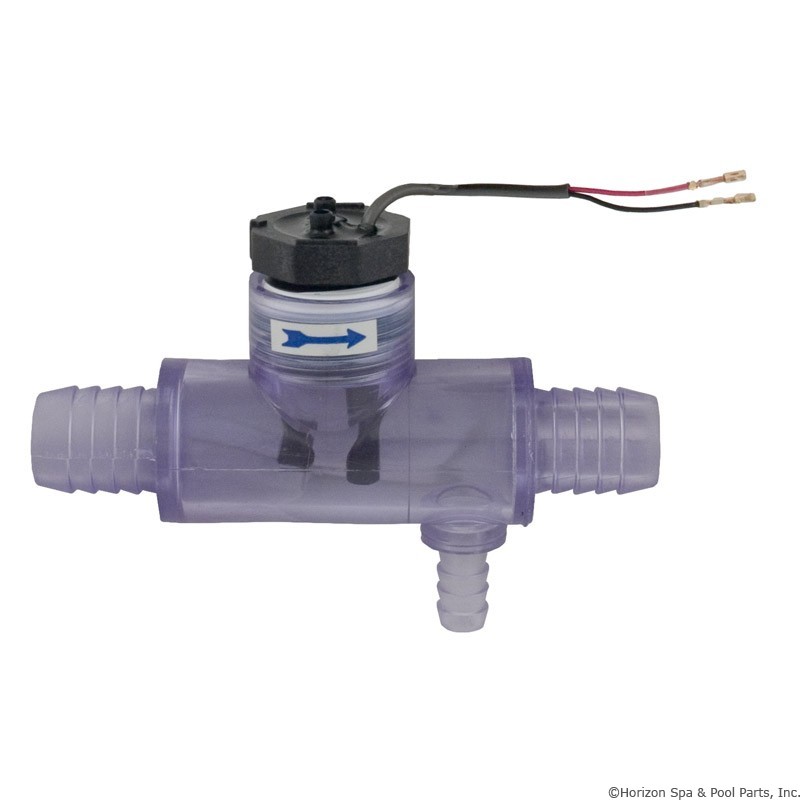

Flow Switch with Transparent Tee 3/4 inch barb with s 3/8 inch barb off the side. Fits all 6/99-Present 2 Pump/ 3 Pump Systems. and 2001+ 1-Pump Capri Systems. 3/4" Barbed.Replaces 6560-858. Flow Switch part number: Q-12DS-C2, manufactured by Harwil. Comes with longer wire lead than shone (look at More Images)
Sundance Spa Models 1999-Present:
800/850/880 Series
Sweetwater and Portofino Series with Circulation Pump
Jacuzzi Spa Models:
2002+ J-300 LCD Series Models (with box end connectors). If you have 2002+ LED J-300 use the 2560-040 (Curled Finger Connectors)
Troubleshooting: A defective flow switch will cause a "Flashing Flo" or even a "Solid Flo" on the Control Panel Icon. "Solid Flo" is the Flo Switch, a "Flashing Flo" could be: Flo Switch, Circulation Pump(clogged or defective), Dirty Filter.
Installation: The connectors on the Flow Switch are attached to a pc board connector that is located on the PC Board (usually at the top). There are other wires connected to this plug: Jumper interlock wire,Flow Switch, High Limit and Temp sensor. Remove the pin connector from the board . To remove a sensor or switch wire from the sensor harness connector, insert a paper clip into the slot corresponding with the wire to be removed. This will depress the pin tine, allowing the wire to be pulled from the harness connector. Important! When reinstalling the sensor or switch wire back into the sensor harness connector, make sure the pin tine is lifted (approx. 1/32") prior to inserting the wire. This will insure the sensor wire locks into the harness connector. Do not over bend the pin tine or it may break off.
