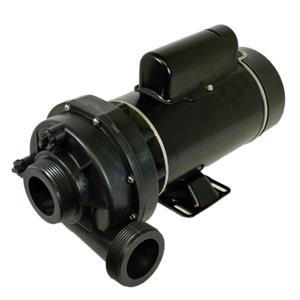

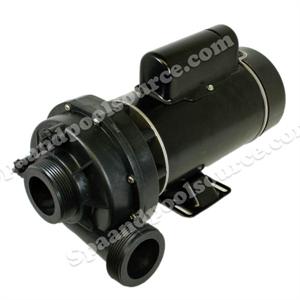

6500-258, 6500-758 Spa Pump for Sundance® Spas, Jacuzzi® 120 Volt - 2 Speed 1.5 HP

<< Previous in Sundance® Spas, Jacuzzi® Spas Pumps, Theramax, Theraflo Pumps, 1997-Present Next in Sundance® Spas, Jacuzzi® Spas Pumps, Theramax, Theraflo Pumps, 1997-Present >>
6500-258, 6500-758 Replacement Pump for Sundance® Spas, Jacuzzi® Spas
6500-258, 6500-758 Replacement Pump for Sundance® Spas, Jacuzzi® Spas
List Price: $507.00
Sale Price: $287.97
Item Number: 6500-258
Manufacturer: AO Smith, Century, US, Emerson Motors
Manufacturer Part No: 6500-258, 6500-758
free shipping
*FREE Standard Ground Shipping on this item with a $4.95 handling fee on all orders (Contiguous U.S. Only). Please see our Shipping Policy!

Spa Pump for Sundance Spas and Jacuzzi Spas

6500-135, 6500-258, 6500-758, 6500-345

Specifications:
  • 13.5/4.7 Amp
  • 2 Speed
  • 1.5 HP
  • 120 Volt
  • 48 Frame

New Motor with Sundance/Jacuzzi Piranha Wet End

The Pump is complete with an Emerson (US) Motor which Sundance uses in their current Motors. The only difference between the Factory Pump and ours is that ours comes with the original welded bracket on the motor instead of the bracket mount currently used by Sundance. Our pump replaces the original found in your spa that had the mounting bracket welded to it.

This can be used for other pumps by Sundance by simply adjusting the position of the wet end by loosening the 4 bolts (this is a thru bolt motor) and turning the wet end to the position of the original pump and then retightening the 4 bolts. We send the pump in the 6500-258 position which is in the 3:00 position.

Notes:
  • We use only a Viton Seal on our Wet ends for long life. The viton seal is designed for harsh chemical environments such as salt, ozone and chemically treated water.These seals are more costly than a standard seal used by most of our competitors.
  • Do not install any 1.5 Hp Pump that has a higher Amp Draw (such as the Waterway 3420610-10). This could damage the Circuit Board and trip the GFI from too high of current load.
  • This 120 Volt Pump is the Current Replacement for these old part numbers: 6500-135, 6500-258, 6500-758, 6500-345

This pump and motor comes with a 1 year warranty from date of purchase.

Used on the Following Sundance Spa Models:
  • Aspen - 1998-1999
  • Bali - 2000-2003
  • Cheyenne - 1998
  • Denali - 2006+
  • Hermosa - 2003-2004
  • Lagunas - 2003-2005
  • Metro - 2004-2005
  • Redondo - 2003-2004
  • Tacoma - 2006+
  • Vail - 1998-1999
Used on the Following Jacuzzi Spa Models:
  • J-310 - 2002-2003 (#1 Pump)
  • Hermosa, Redondo 2002-2004 (#1 Pump)
  • J-315 - 2004-2007+ (#1 Pump)
  • J-220, J-210 - 2005-2007+ (#1 Pump)
  • J-325 - 2008+ (#1Pump)

This pump can be used for the following pump numbers by rotating the wet end to match the position of the original pump.

  • 6500-259
  • 6500-258
  • 6500-293
  • 6500-345
  • 6500-759
  • 6500-758
  • 6500-793

Additional Information:

For parts for this pump, click here.

Visit our Facebook page for a how-to video on replacing the Jet Pump in your Sundance Spa

For All Sundance Pumps, Click Here!
